Simulation of Beamforming using FD-MIMO for LTE-Advanced Pro in an Urban Small Cell
Full Dimension Multiple Input, Multiple Output (FD-MIMO) is a promising new technology in LTE-Advanced Pro. With 3GPP expanding the potential transmit antennas for LTE-A Pro eventually to as many as 64, detailed modeling of the channel characteristics is becoming increasingly complex. Remcom’s Wireless InSite® MIMO can be used to predict performance for FD-MIMO systems in urban environments.

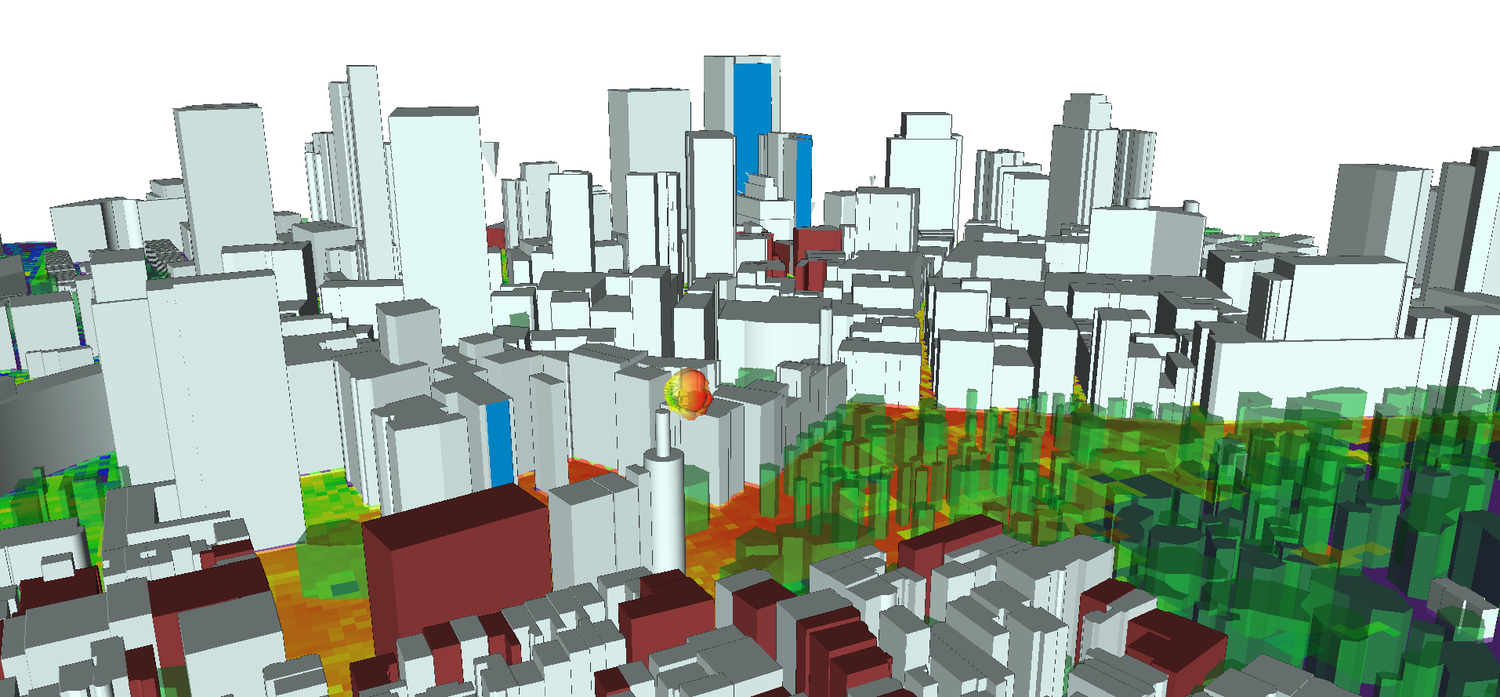

This presentation demonstrates an innovative new simulation capability that uses three-dimensional ray-tracing to fully characterize channels, with significant optimizations to limit the additional computation required to predict the channel matrices for base stations using FD-MIMO. We use results from simulations to evaluate a hypothetical small cell base station employing FD-MIMO for cases using different numbers of transmit antennas. We then analyze predicted multipath in the environment and compare performance of beamforming techniques for each of the simulated cases.
